105 KPH
Three modes: 1 for climbing, 2 for endurance and 3 for power.
240 KM
Measured data of urban traffic conditions with dual battery.
3 Hours
From 0 to 100% charger time
CBS Brake
More safer with front and rear linked brakes

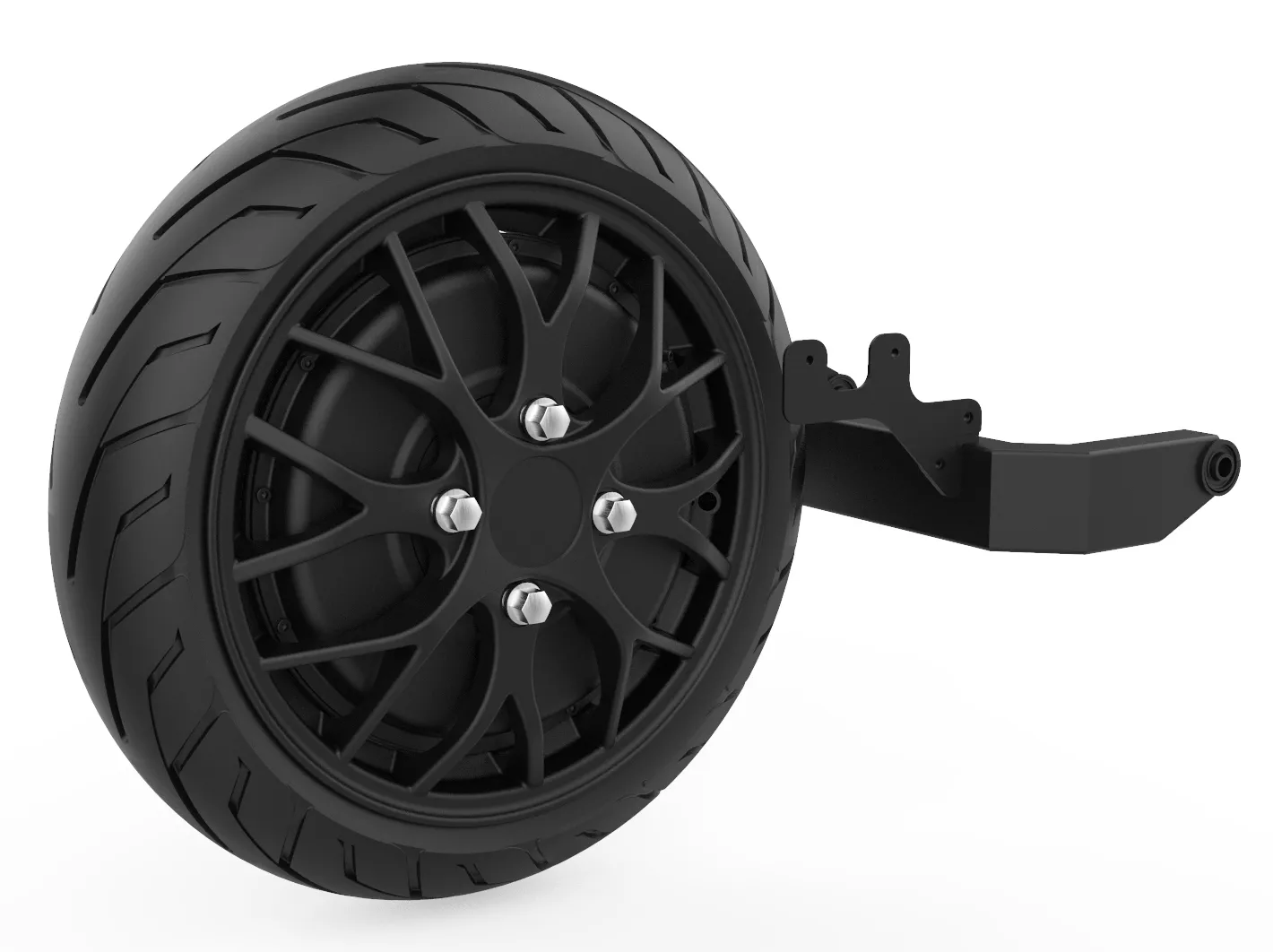

Single Side Motor
——
Rated Power 5KW Peak Power 7.7KW
Max Torque 225Nm
Waterproof IP67

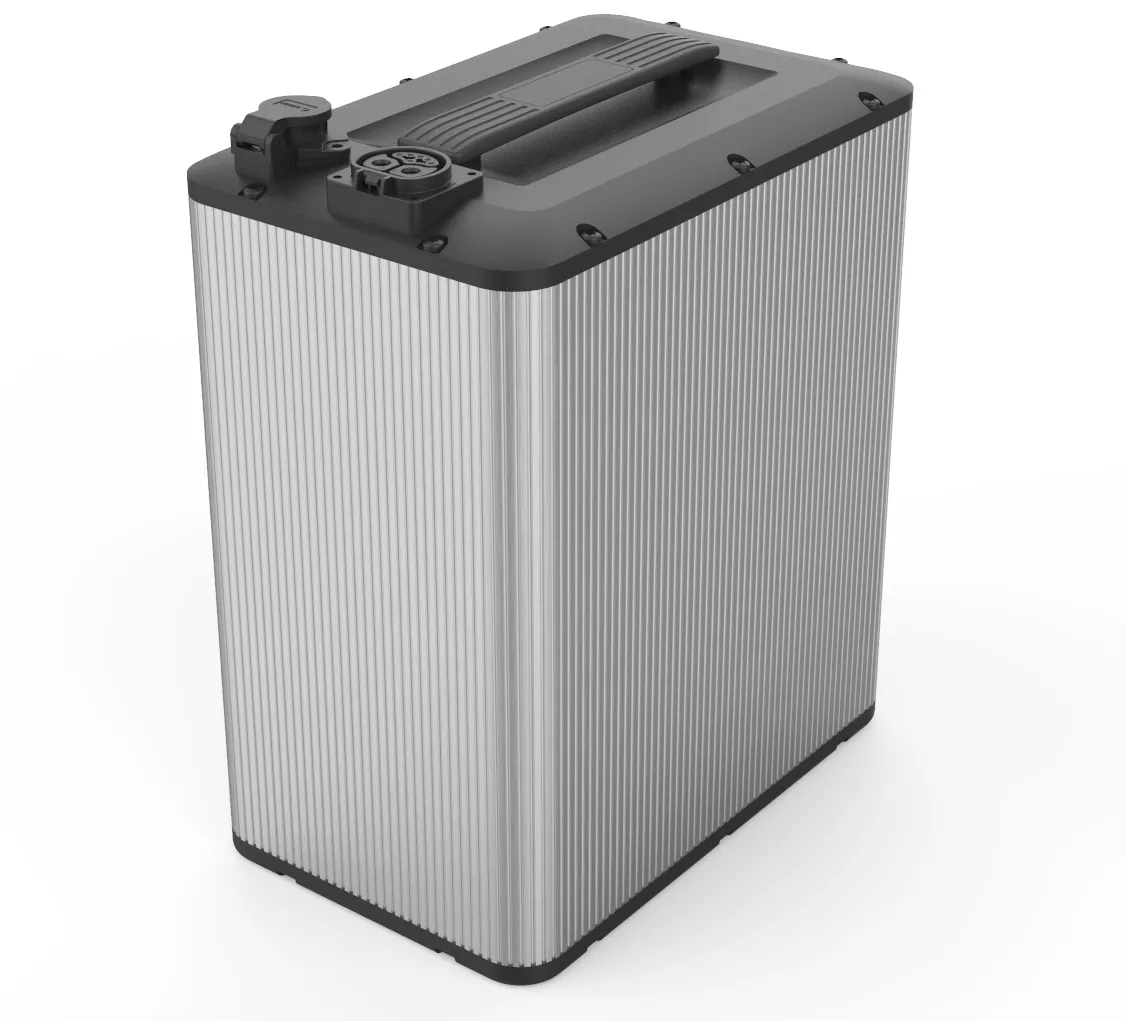

Lithium Battery NCM
——
Weight 23KG
Capacity 4.2KWH
Size:265*165*310mm
Cycle 1000+ times
On-board Charger
——
Assembled on the motorcycle which power is 2.2KW. Can charge from 0-100% in 2.5H

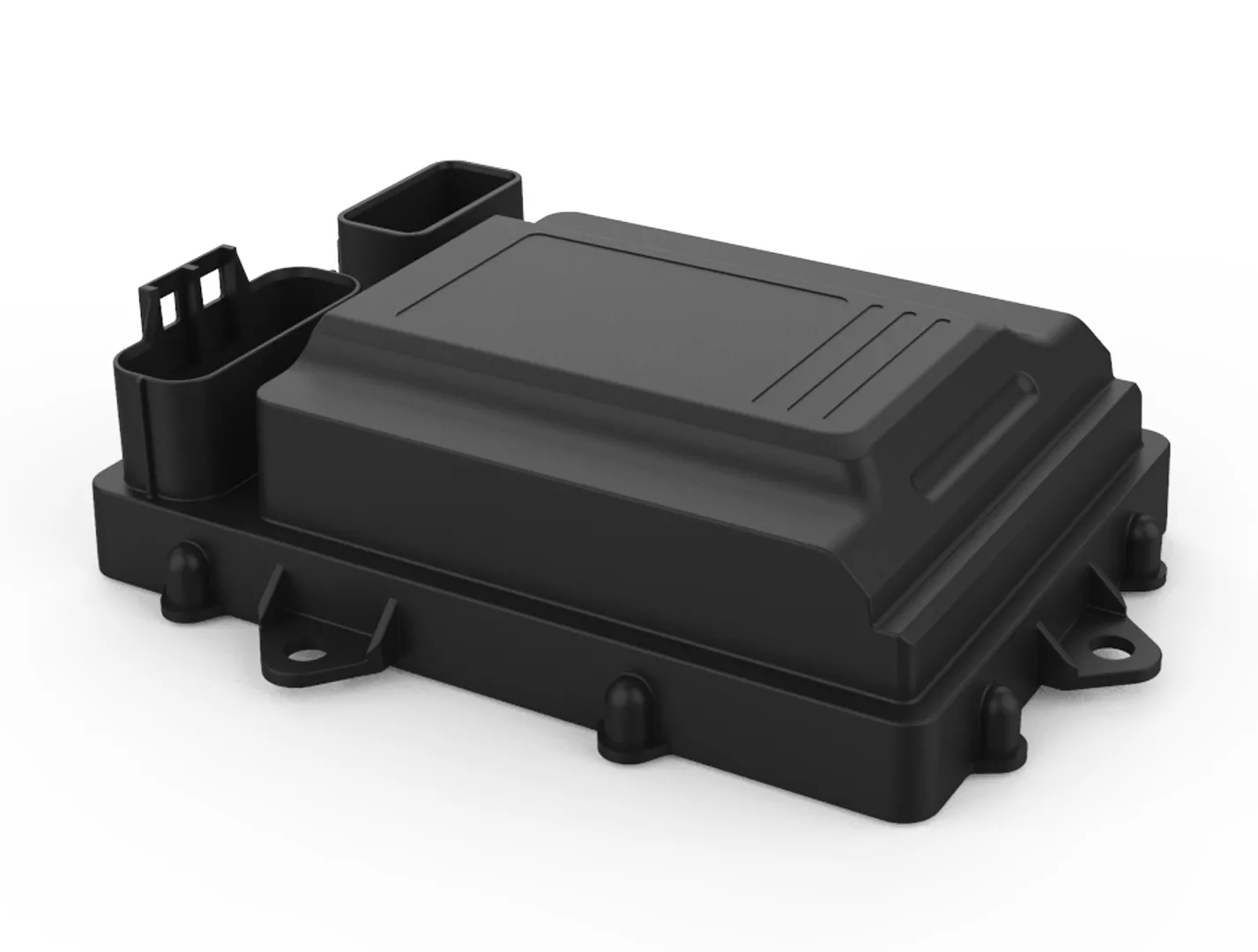

Vehicle Control Unit
——
Driving Intention Recognition and Vehicle Control
Powertrain Coordination and Energy Management
Network Management and Fault Diagnosis
Supports Over-the-Air (OTA) updates
Bluetooth/Wireless Module/5G Communication

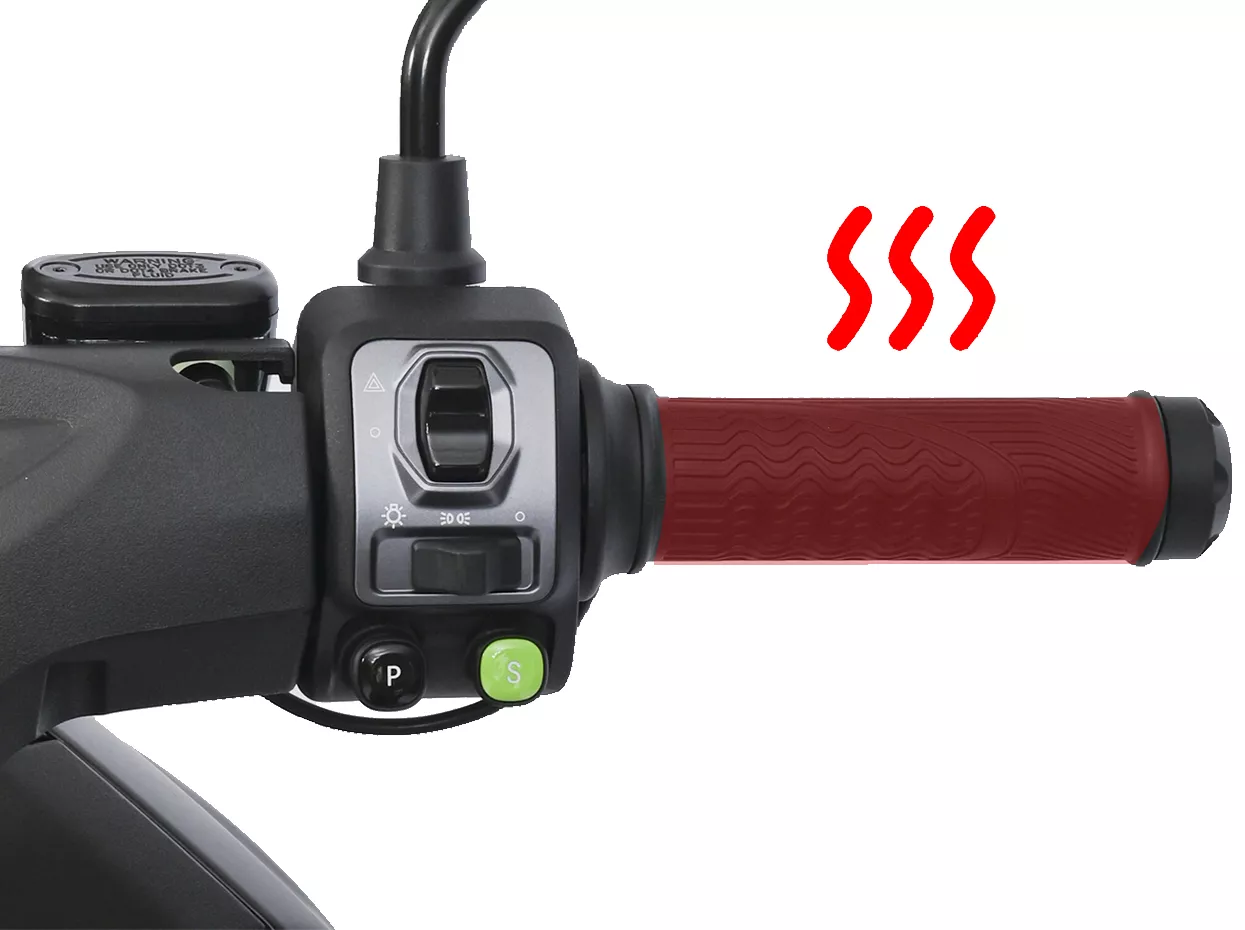

Heated Grips
——
Independent switch
Three-level temperature adjustment

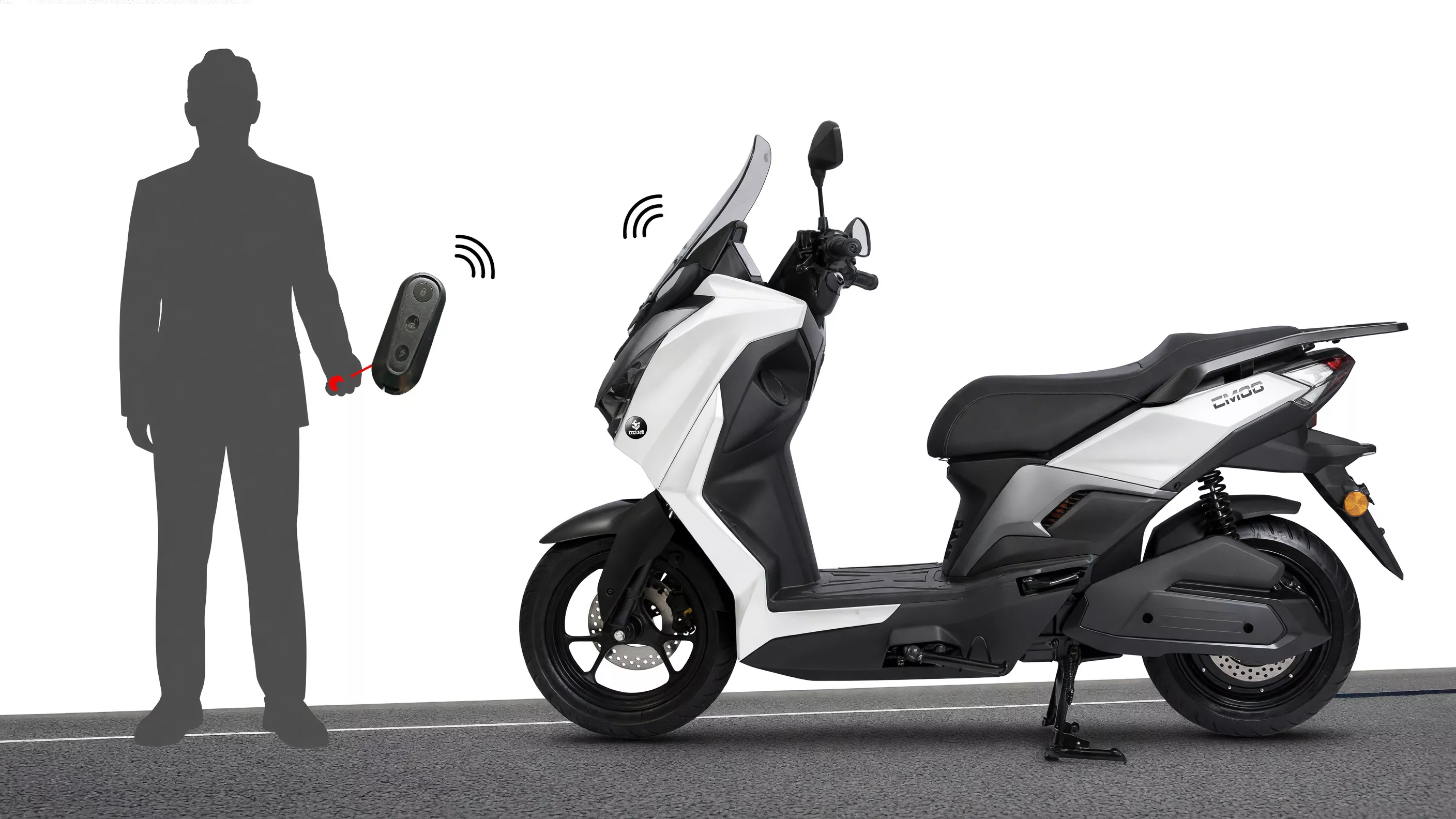

PKE
——
Unlock Modes
1. PKE proximity unlock
2. Bluetooth key button unlock
3. Mechanical key unlock

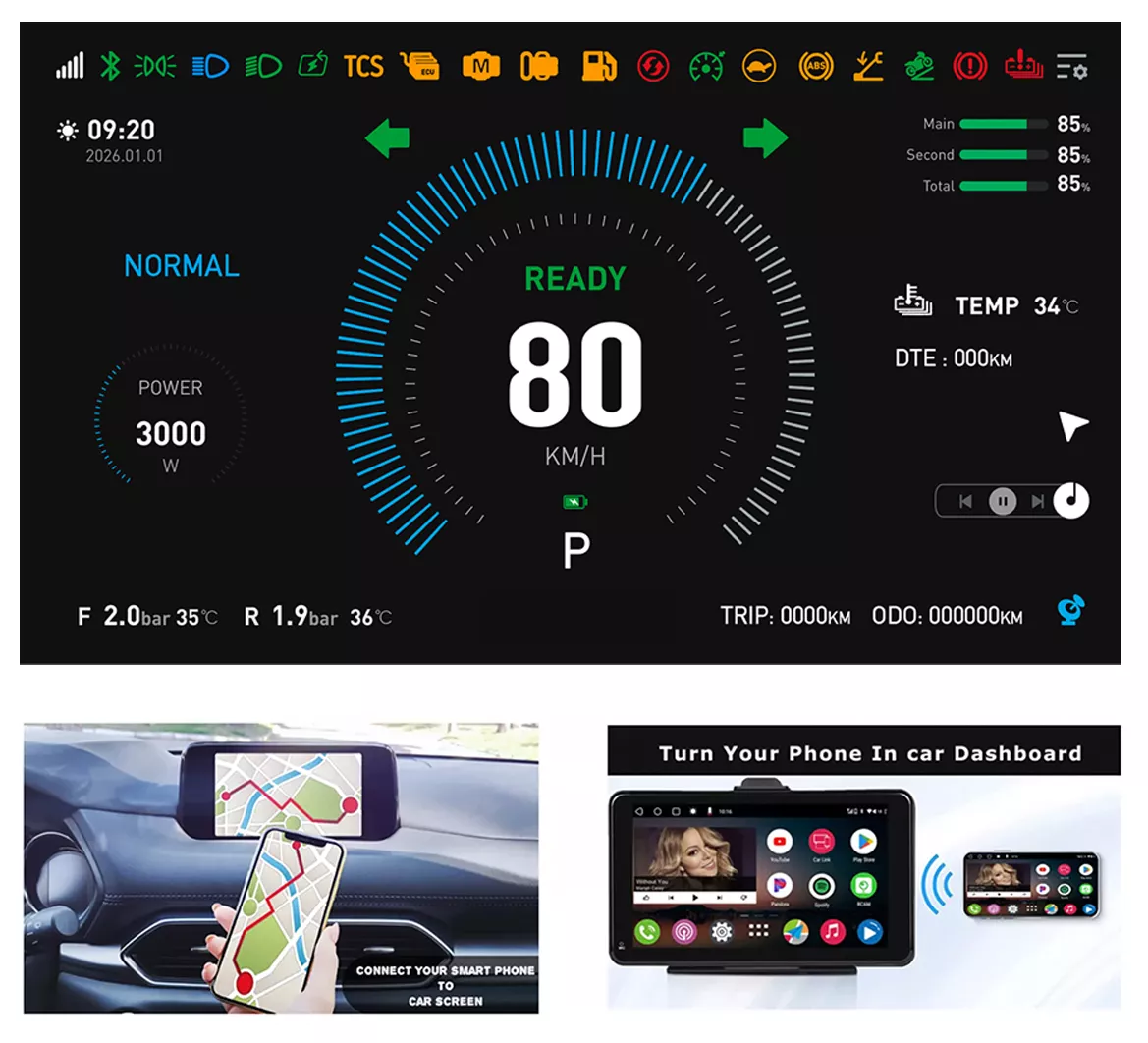

7-inch Full Touched TFT Smart Dispaly
——
Android Auto & Carplay Function Android & Apple Mirror
Navigartion show on the display
Play movies and music
Dash cam
TPMS
——
The electronic system built into the tires can monitor tire pressure and temperature in real time. When the tire pressure is too low, too high, leaking air rapidly, or the temperature is abnormal, it will alert the driver via a warning light on the display.

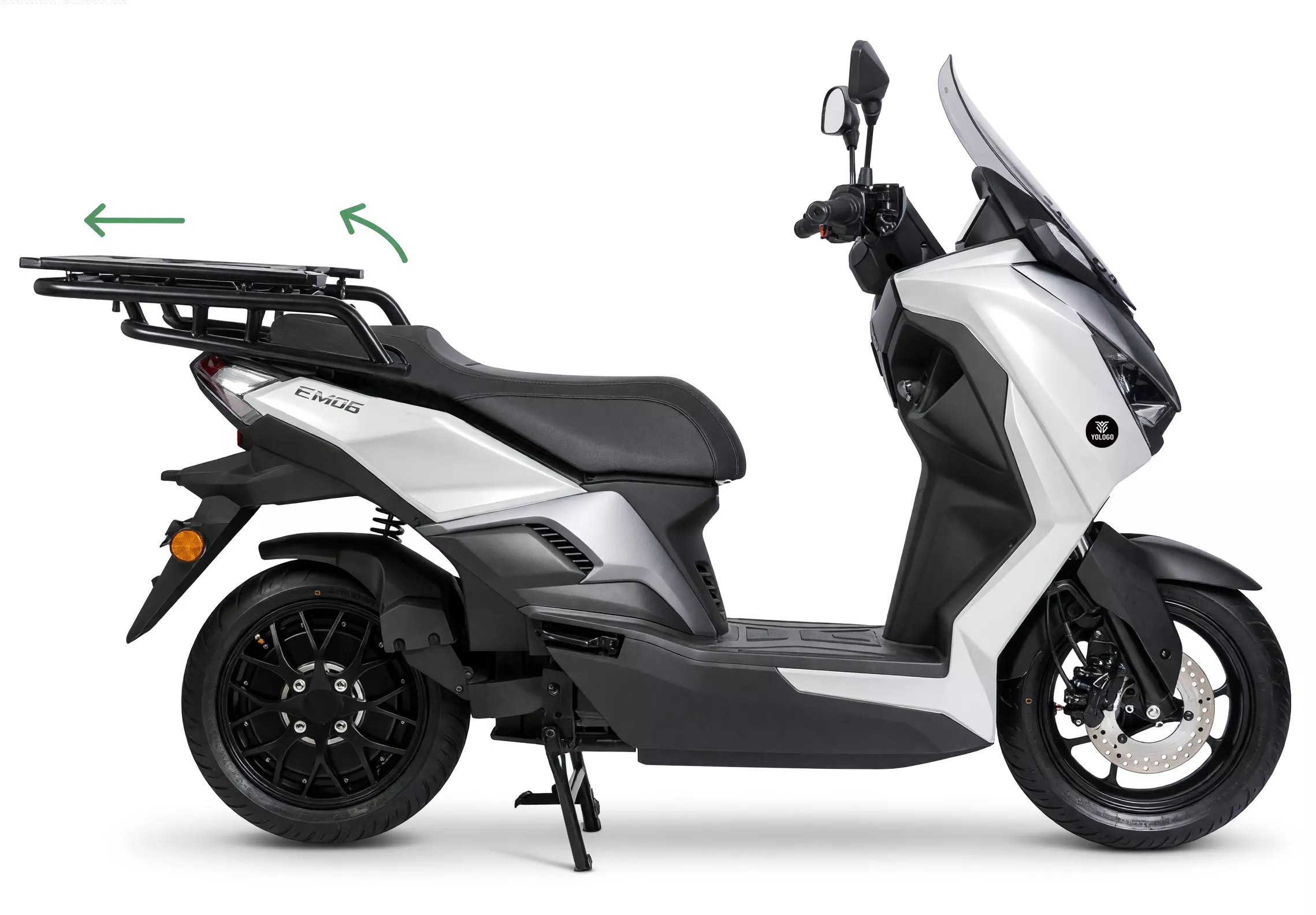

Delivery Version
——
Move the box backward and you can open the seat to remove the battery easily.
Box size:500*500*500mm
- Matte Black
- Deep Grey
- Deep Red
- Matte White
____

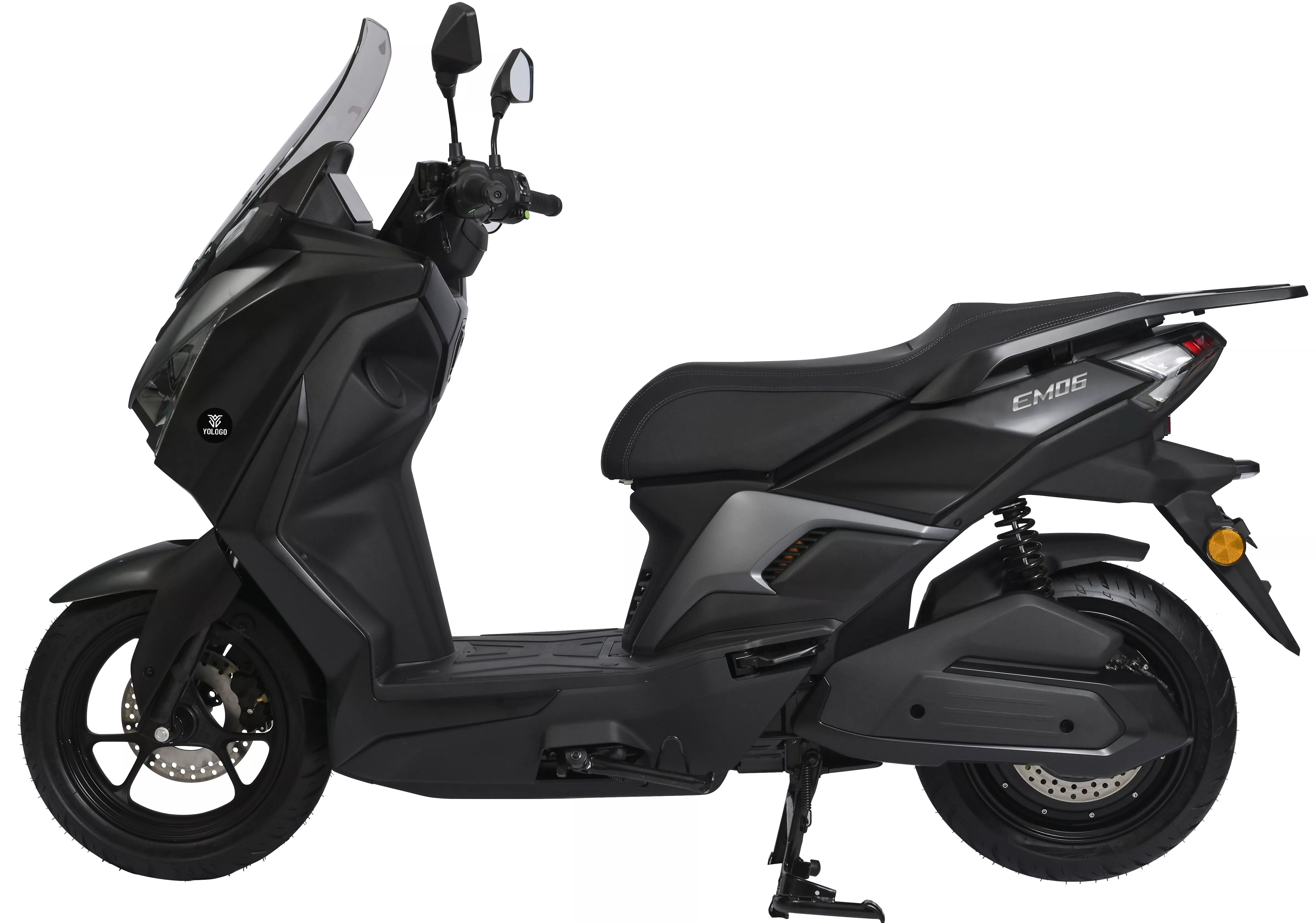

Angled Maxi-Scooter
____
Powerful/Long Range/Smooth Driving Experience
5000w
Rated Power
105km/h
Max. Speed
225N.m
Max. Torque
30°
Climbing Angle
____
Waterproof ratings of IPX7
Key components are designed with a good waterproof rating (such as IPX7), capable of withstanding rain and wading to a certain depth. Modern electric motorcycles use automotive-grade waterproof connectors, and core components such as controllers and motors are also waterproofed.
____
AC Fast Charging
2200 W
Power
2.5 h
Charge time
____
Home Charging
The vehicle comes with a dedicated charger; it charges at 15A, and a single battery takes 4 hours to fully charge.
____
Powerful High Speed Scooter
Power surges forth, ride through the city dusk. Ample power responds instantly, unleashing surging energy amid twilight skyscrapers, cutting through the wind without hesitation.
____
Elegant on the go, effortless commuting
1. Elegant style, the ideal choice for the daily commute—move freely through the city from dawn to dusk.
2. Stylish and dynamic, offering agile handling for an effortless daily commute.
3. Sophisticated aesthetics ensure a composed and relaxed commute.
Size
——
Full Size : 1960*757*1333mm
Wheelbase : 1390mm / 54.7 inch
Seat Hight : 800mm / 31.5 inch
Handlebar Height : 1136mm / 44.7 inch
Basic Information | |
Size | 1960*757*1333mm |
Seat Height | 800mm |
Wheelbase | 1390mm |
Ground Clearance | 120mm |
Front Wheel | 120/70-13 |
Rear Wheel | 140/60-13 |
Motor | |
Motor | Rear Wheel Hub Motor |
Rated Power | 5000W |
Max. Torgue | 225N.m |
Max. Speed | 105km/h |
Climb Angle | 30° |
Battery | |
Battery Type | NCM |
Capacity | 72V58Ah |
| Battery Weight | 23kg |
Charging Time | 6h/2.5h Fast Charger |
Charger | 15A |
| Range | 120 km |
Others | |
Brake | CBS |
Disc | Φ220*Φ115*4.0 |
Display | LED |
Vehicle Weight | 110kg |
Max. Loading | 200kg |
USB | B&C Type |
Person | 2 |
Keyless | Yes |
TFT | Yes |
TypeII | Yes |
EEC | L3e-A1 |
