105 KPH
Three modes: 1 for climbing, 2 for endurance and 3 for power.
120 KM
Measured data of urban traffic conditions with one battery.
2.5 Hours
From 0 to 100% charger time
CBS Brake
More safer with front and rear linked brakes

Single Side Motor


——

Rated Power 5KW Peak Power 7.5KW Max Torque 225Nm Waterproof IP67


On-board Charger
——
Assembled on the motorcycle which power is 2.2KW. Can charge from 0-100% in 2.5H

Lithium Battery


——

Weight 23KG
Capacity 4.2KWH Size:265*165*310mm Cycle 1000+ times

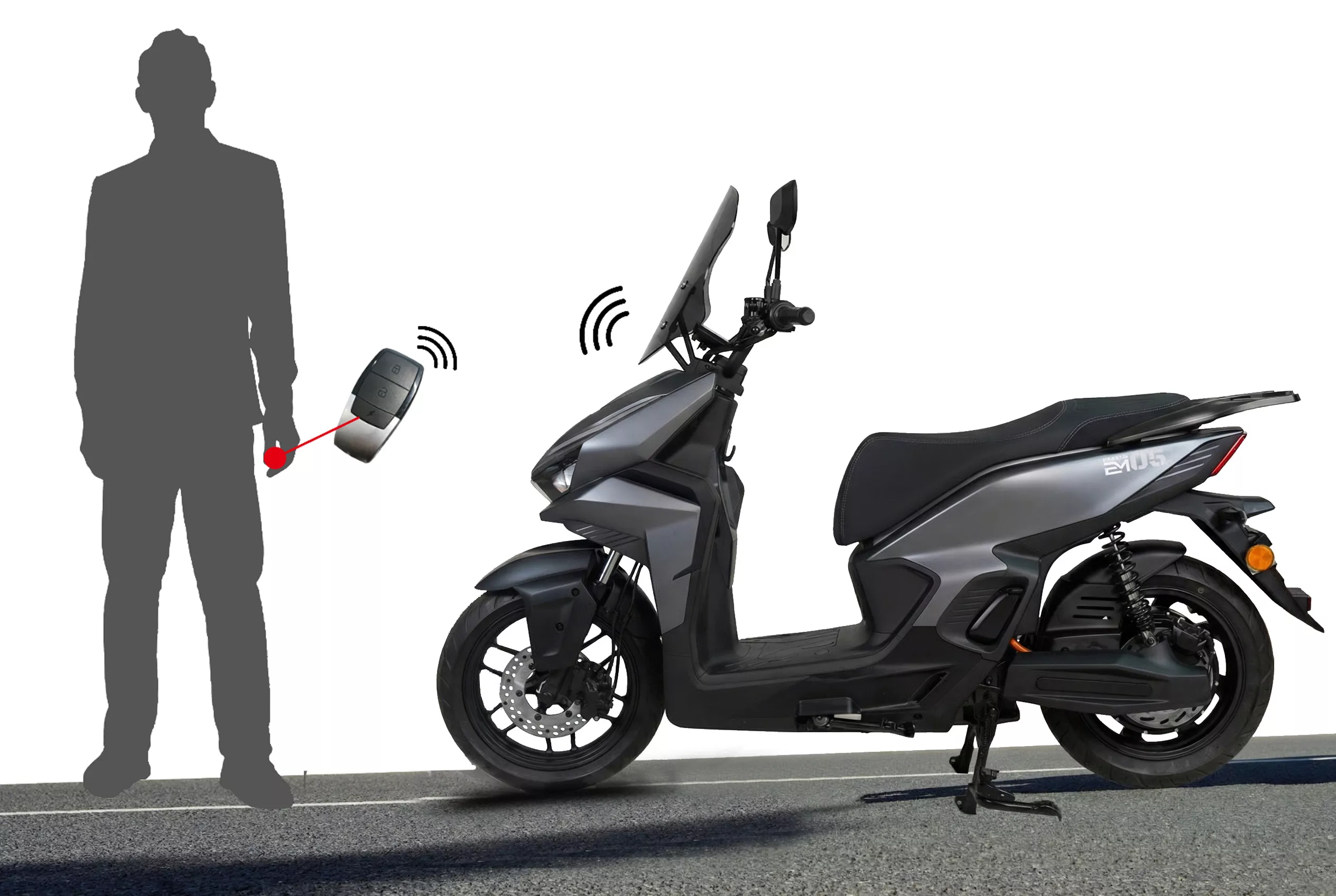

Keyless Enter
——
When you appraach the vehicle, it can get the wireless signal.

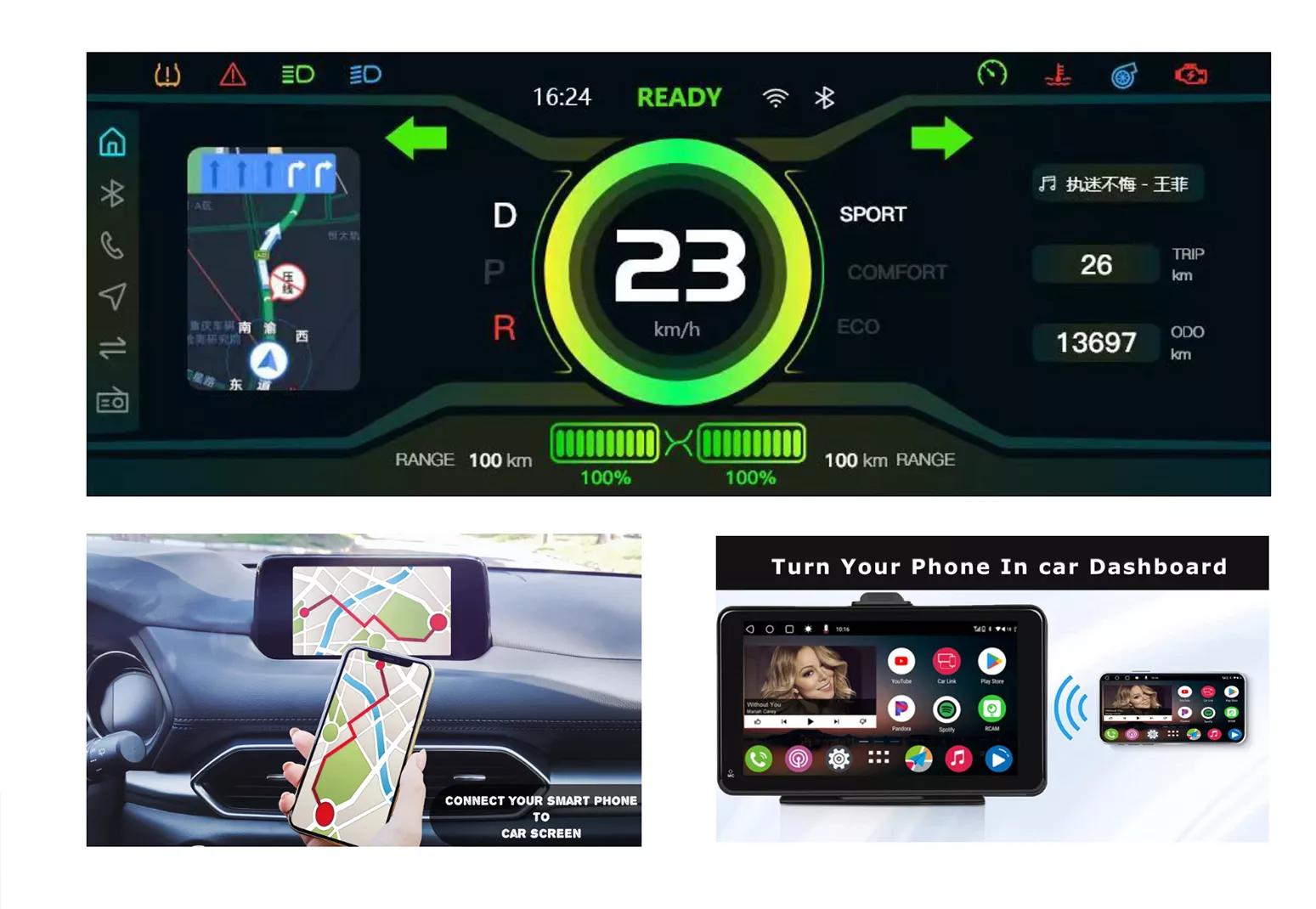

5-inch Full Touched TFT Smart Dispaly


——

Android Auto & Carplay Function Android & Apple Mirror
Navigartion show on the display Play movies and music

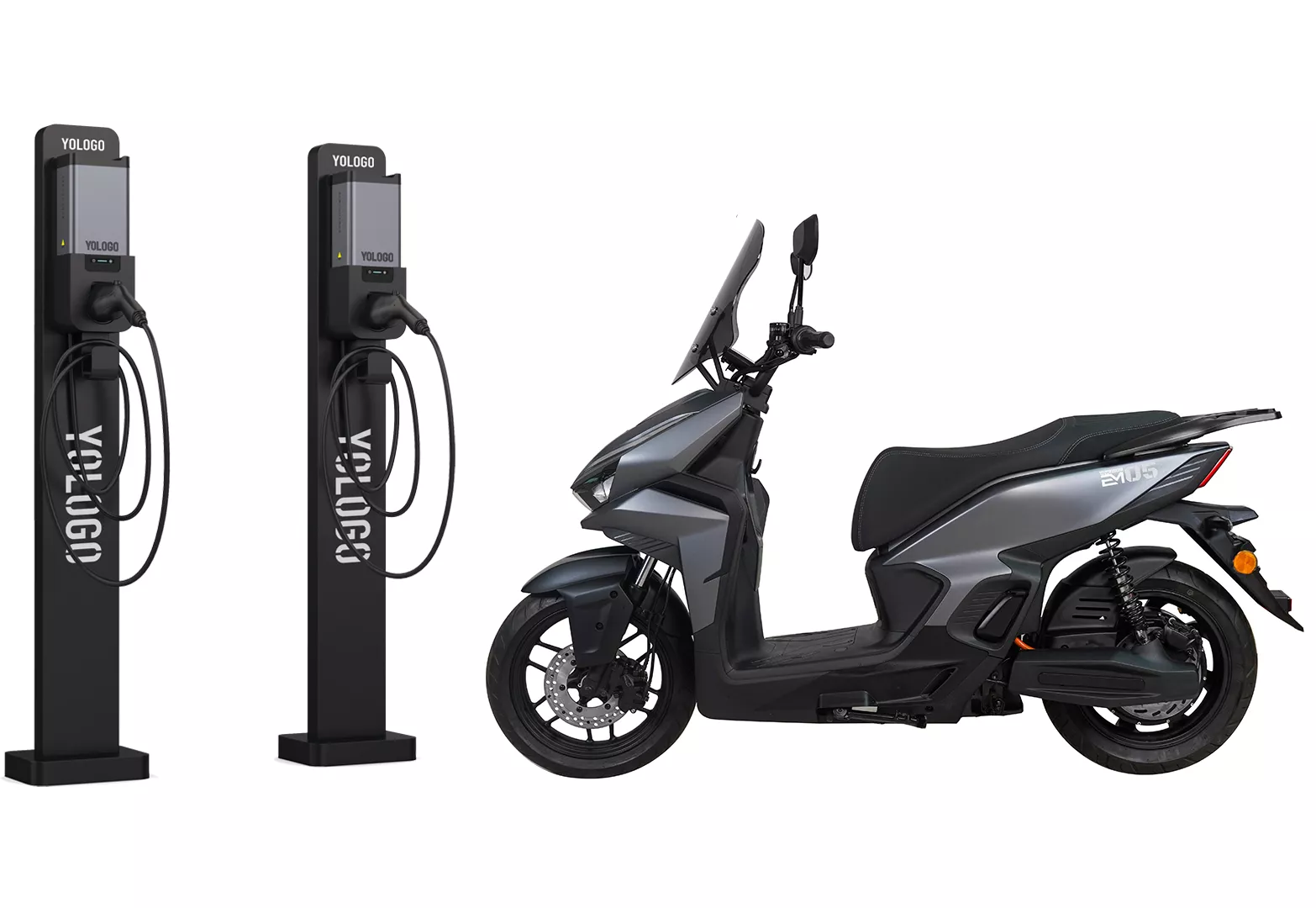

AC Fast Charge
——
Use e-automotive charging sation to quicklt charge for the vehicle on the roadside.

TPMS

——

The electronic system built into the tires can monitor tire pressure and temperature in real time. When the tire pressure is too low, too high, leaking air rapidly, or the temperature is abnormal, it will alert the driver via a warning light on the display.

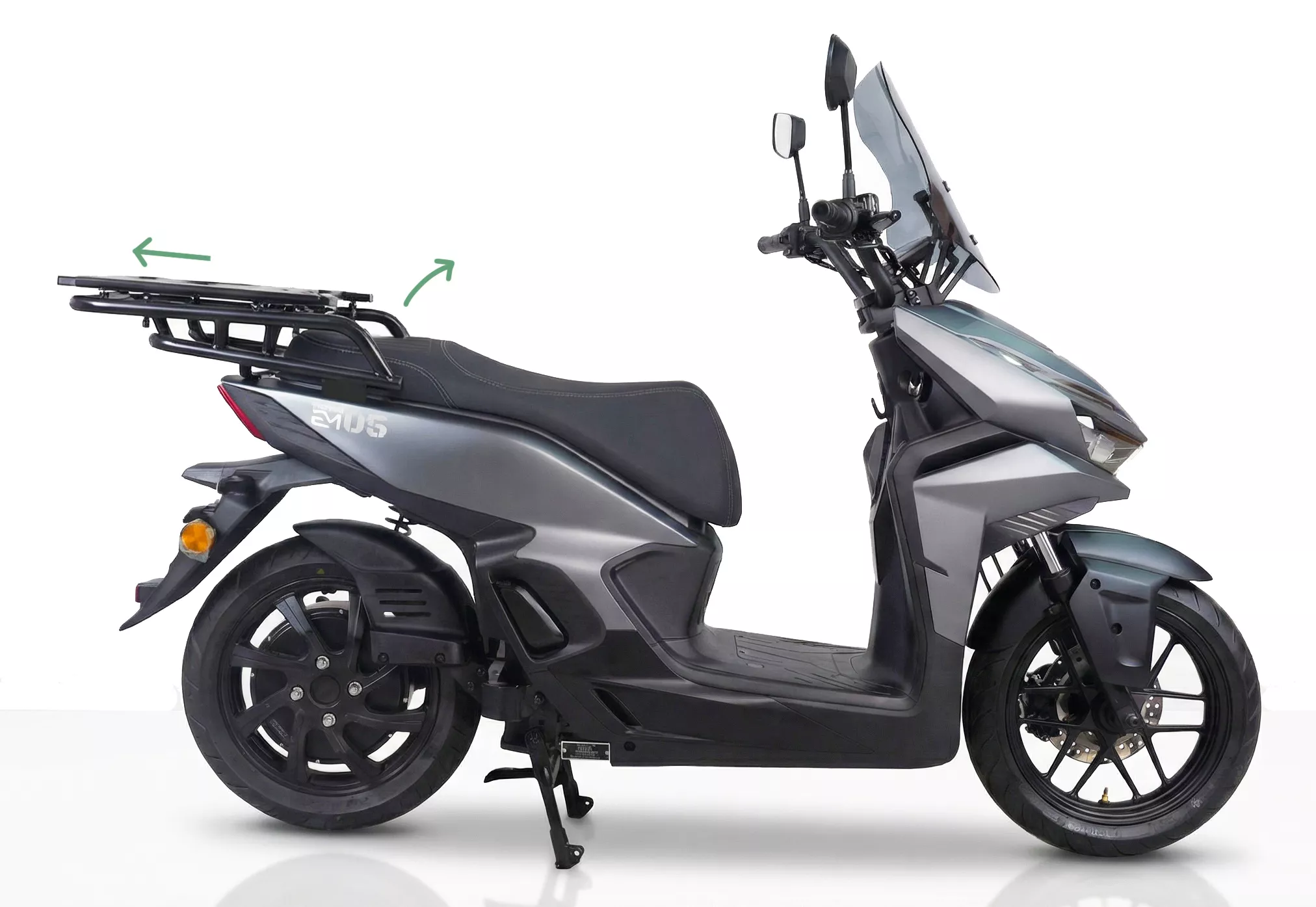

Delivery Version


——

Move the box backward and you can open the seat to remove the battery easily.
Box size:500*500*500mm


  • Pearl Gray
  • Matte Blue
  • Forest Green
  • Matte Black
____

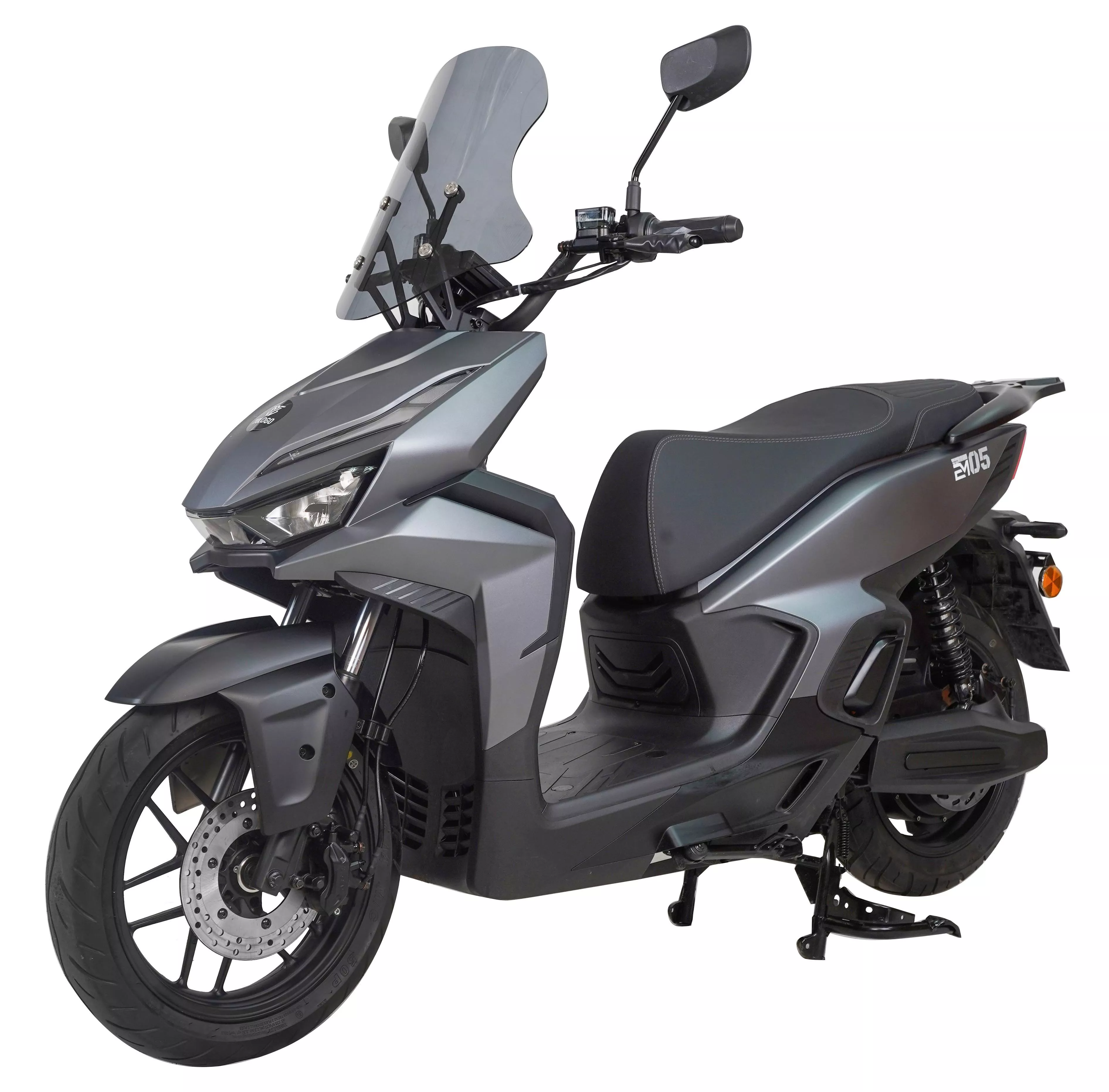

Elegance Meets Electrifying Power

Dive into a new era of motorcycle design powered by EM05. Our forward-leaning, sleek style screams speed and athleticismit's not just a ride—it's an experience of power and unparalleled style on every road.


____

Powerful/Long Range/Smooth Driving Experience


5000w
Rated Power


105km/h
Max. Speed


225N.m
Max. Torque

30°
Climbing Angle

____
Waterproof ratings of IPX7

Key components are designed with a good waterproof rating (such as IPX7), capable of withstanding rain and wading to a certain depth. Modern electric motorcycles use automotive-grade waterproof connectors, and core components such as controllers and motors are also waterproofed.


____

AC Fast Charging


2200 W
Power


2.5 h
Charge time



Size
——
Full Size : 1940*710*1136mm Wheelbase : 1340mm / 52.7 inch Seat Hight : 800mm / 31.5 inch
Handlebar Height : 1136mm / 44.7 inch




   Basic Information

   Size

1940*710*1136mm

   Seat Height

800mm

   Wheelbase

1340mm

   Ground Clearance

120mm

   Front Wheel

100/80-14

   Rear Wheel

100/80-14

   Motor

    Motor

Rear Wheel Hub Motor

    Rated Power

5000W

    Max. Torgue

225N.m

    Max. Speed

105km/h

    Climb Angle

30°

   Battery

   Battery Type

NCM

   Capacity

72V58Ah

   Battery Weight23kg

   Charging Time

6h/2.5h Fast Charger

   Charger

10A

   Range

120 km

   Others

   Brake

CBS

   Disc

Φ220*Φ112*4

   Display

LED

   Vehicle Weight

90kg

   Max. Loading

200kg

   USB

B&C Type

   Person

2

   Keyless

Yes

   TFT

Yes

   TypeII

Yes

   EEC

L3e-A1
