105 KPH
Three modes: 1 for climbing, 2 for endurance and 3 for power.
120 KM
Measured data of urban traffic conditions with one battery.
6 Hours
From 0 to 100% charger time
CBS Brake
More safer with front and rear linked brakes

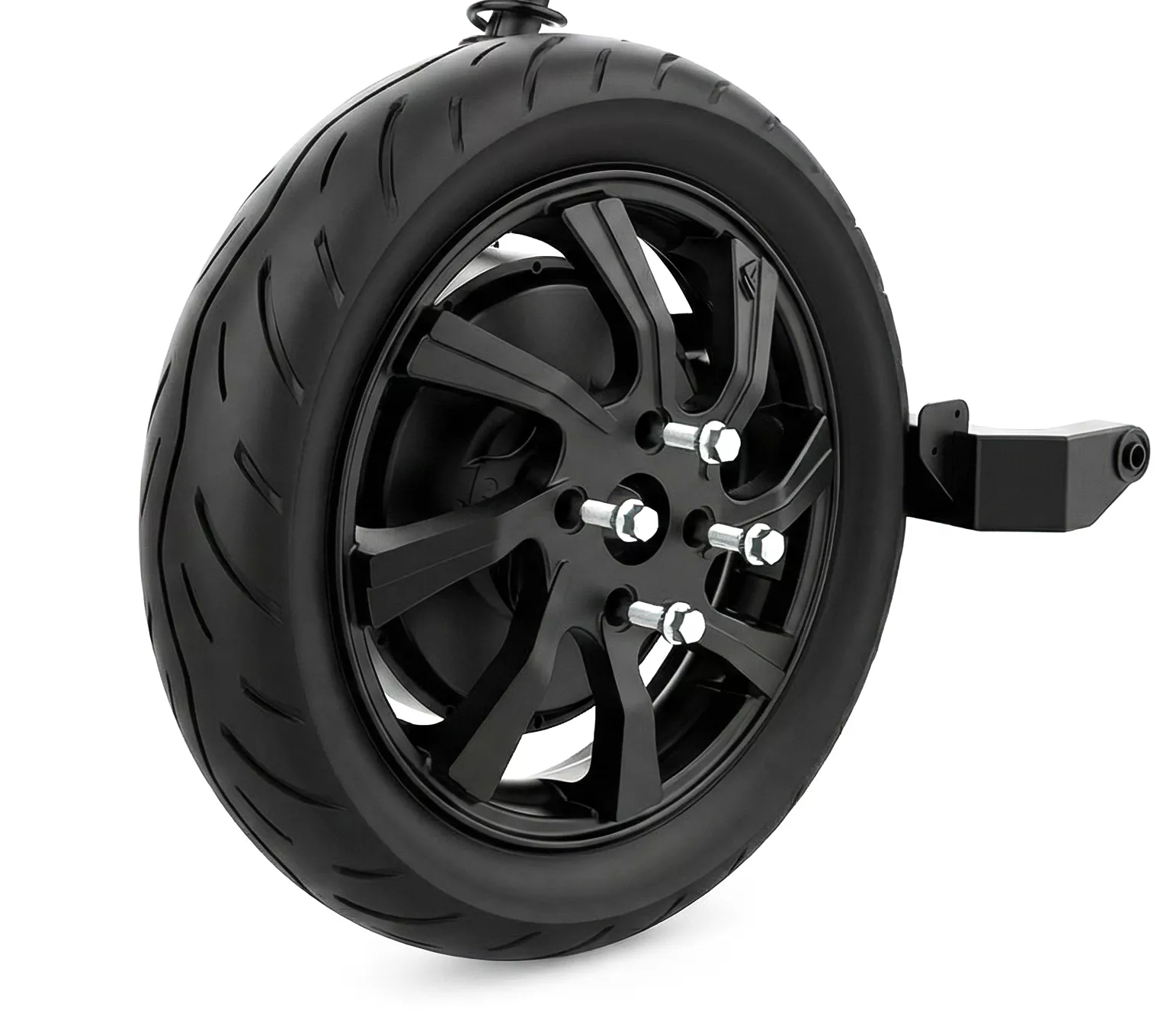

Single Side Motor


——

Rated Power 5KW Peak Power 7.5KW Max Torque 225Nm Waterproof IP67
Easy To Unassemble The Rear Tire

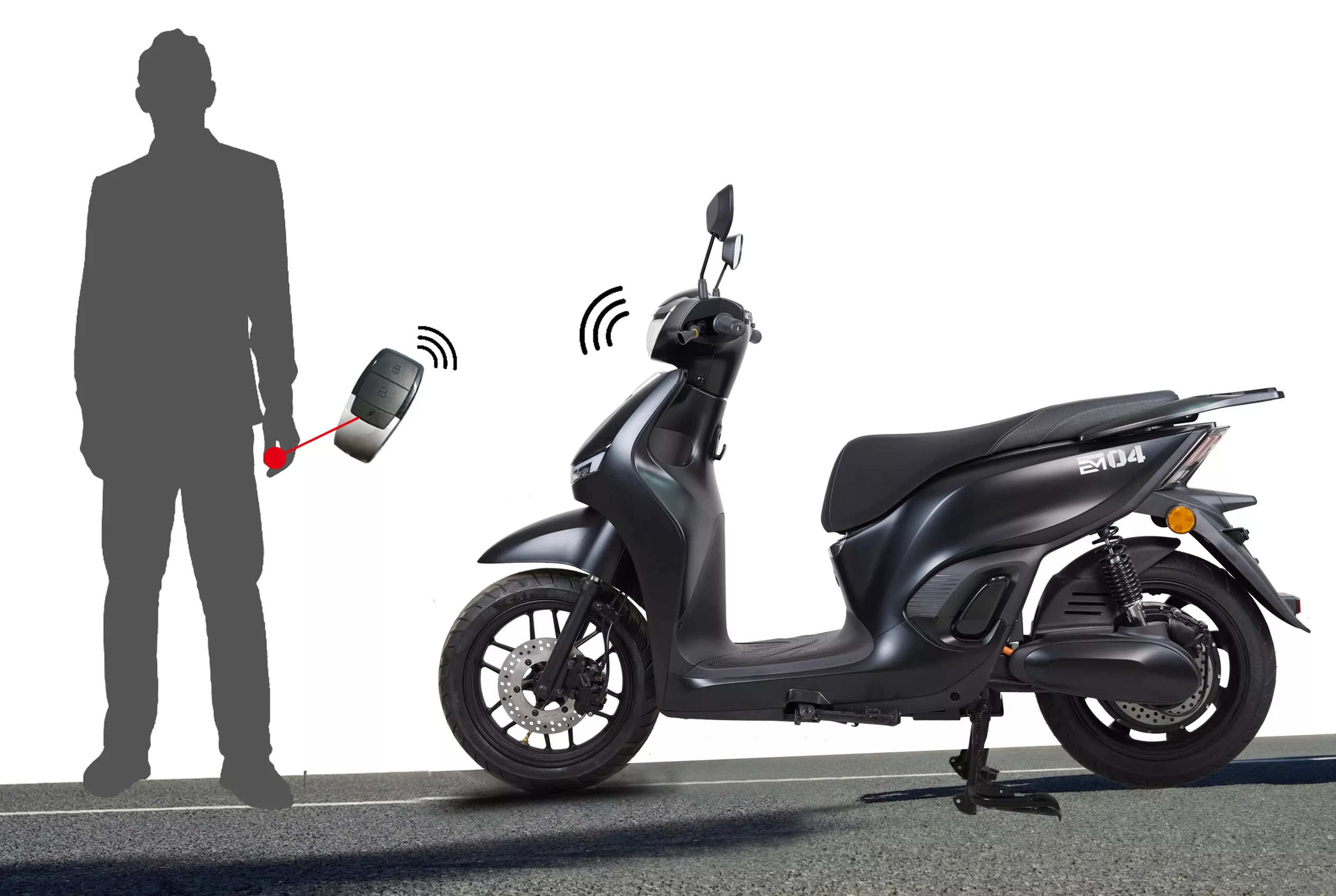

Keyless Enter
——
When you appraach the vehicle, it can get the wireless signal.

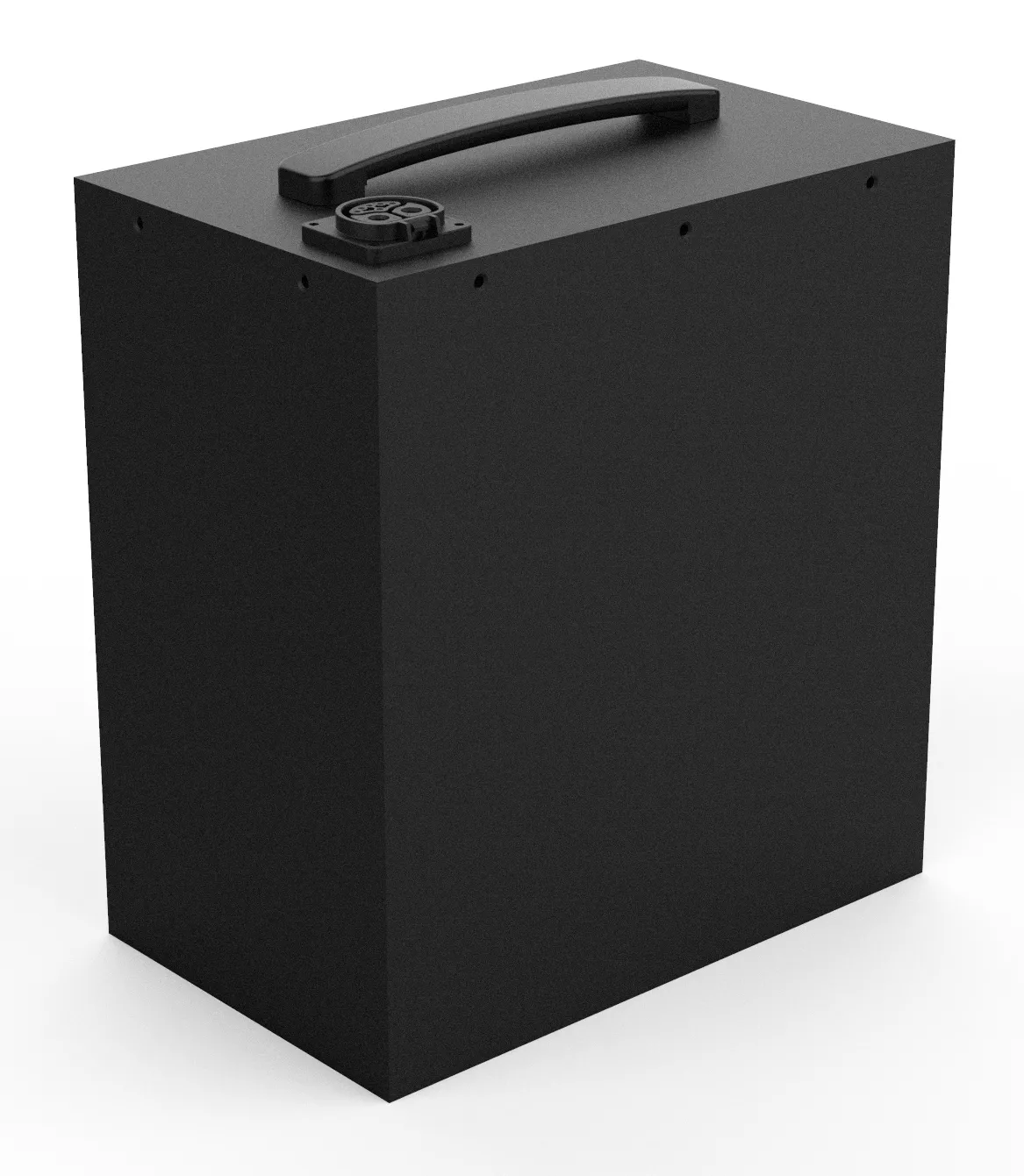

NCM Lithium Battery


——

Weight 23KG
Capacity 4.2KWH Size 265*165*310mm Cycle 1000+ times

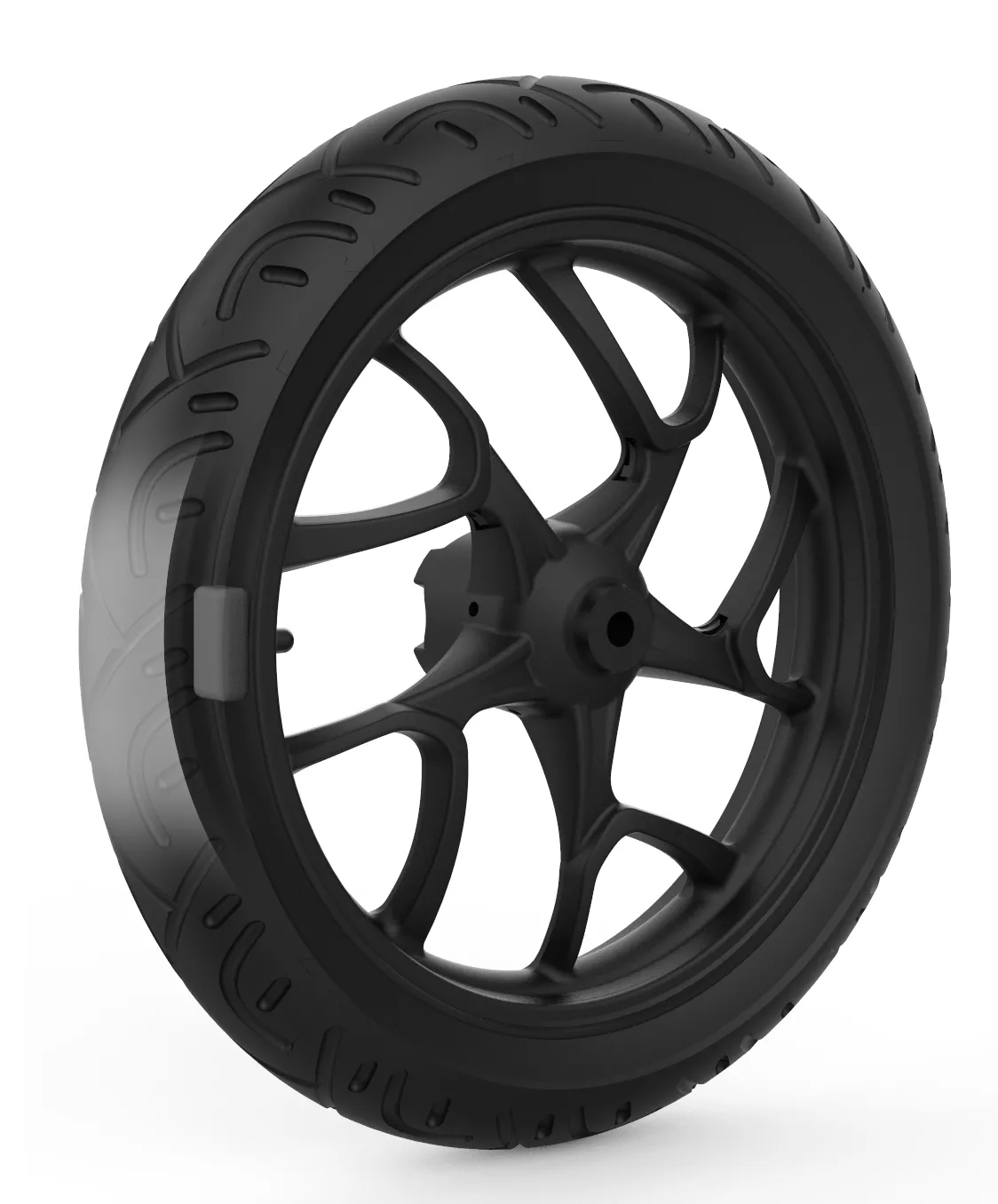

TPMS

——

The electronic system built into the tires can monitor tire pressure and temperature in real time. When the tire pressure is too low, too high, leaking air rapidly, or the temperature is abnormal, it will alert the driver via a warning light on the display.

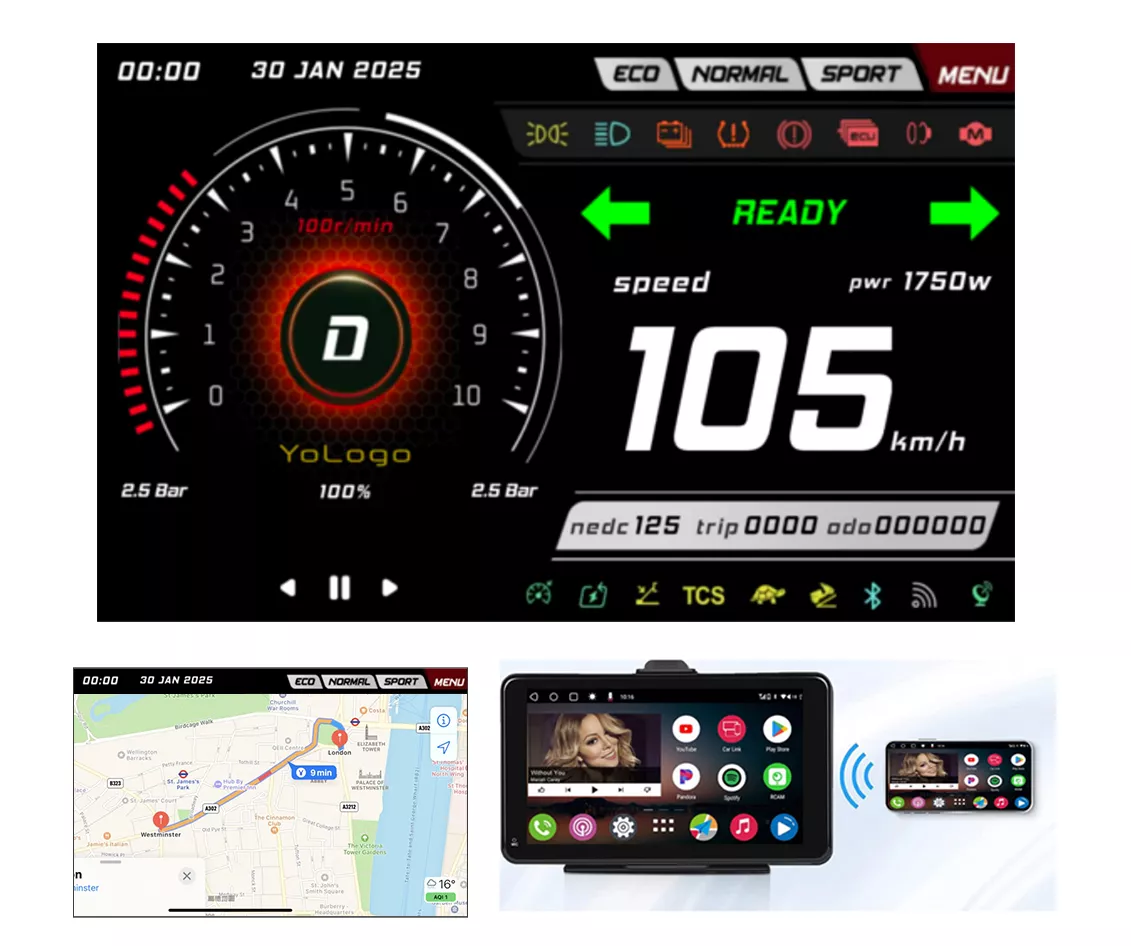

5-inch Full Touched TFT Smart Dispaly


——

Android Auto & Carplay Function Android & Apple Mirror
Navigartion show on the display Play movies and music

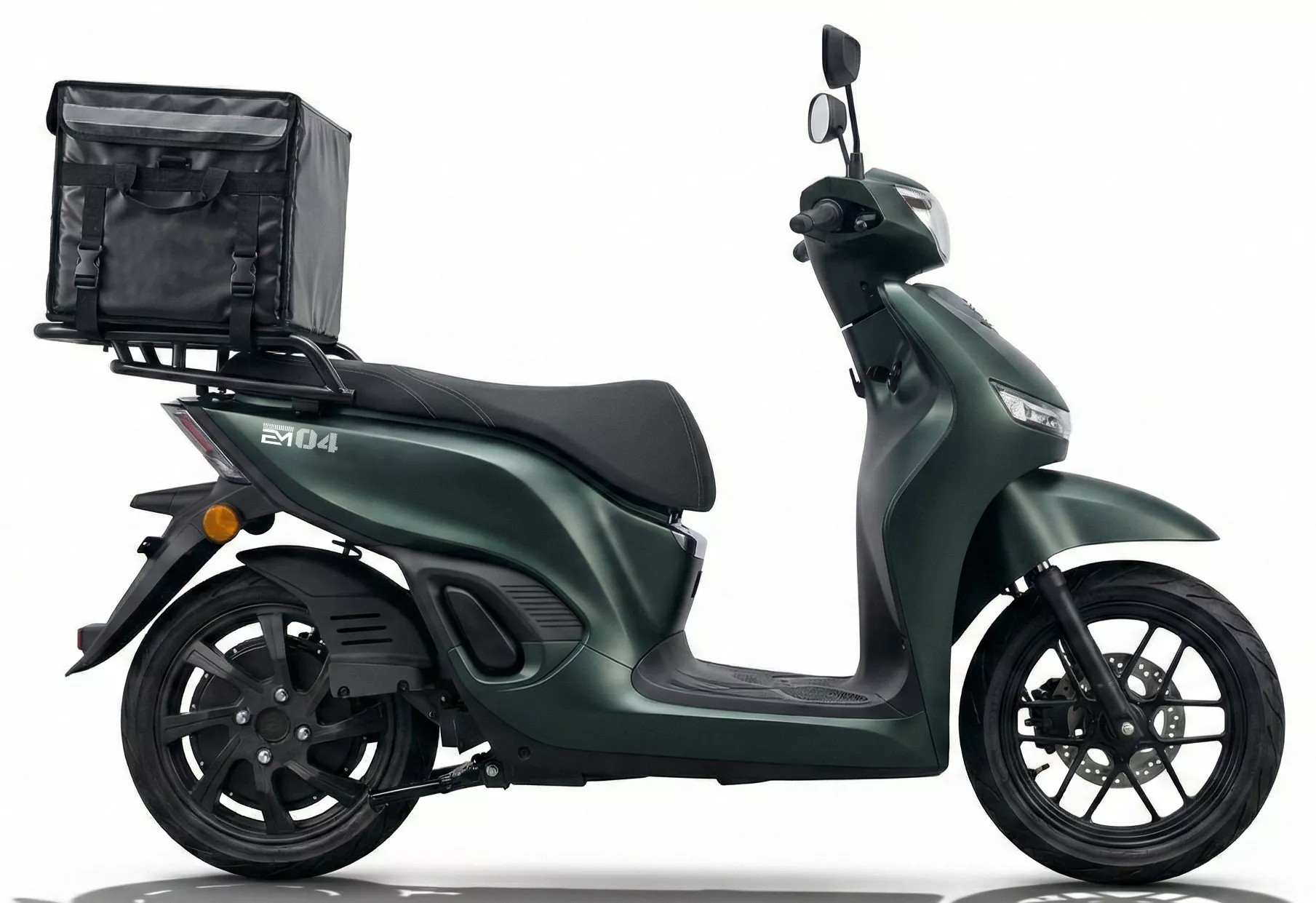

Delivery Version


——

Move the box backward and you can open the seat to remove the battery easily.
Box size:500*500*500mm


  • Matte White
  • Hunter Green
  • Charm Purple
  • Matte Black
____

Powerful/Long Range/Smooth Driving Experience


5000w
Rated Power


105km/h
Max. Speed


225N.m
Max. Torque

30°
Climbing Angle

____
Rear Wheel Single Swing Arm

It is aesthetically pleasing, facilitates tire changes, is lightweight, offers a premium feel, and has the potential to improve handling. Maintenance is simpler, and unlike the common dual shock absorber design, it enhances the vehicle's premium feel, reduces some unsprung mass, and helps improve handling agility and grip.

____

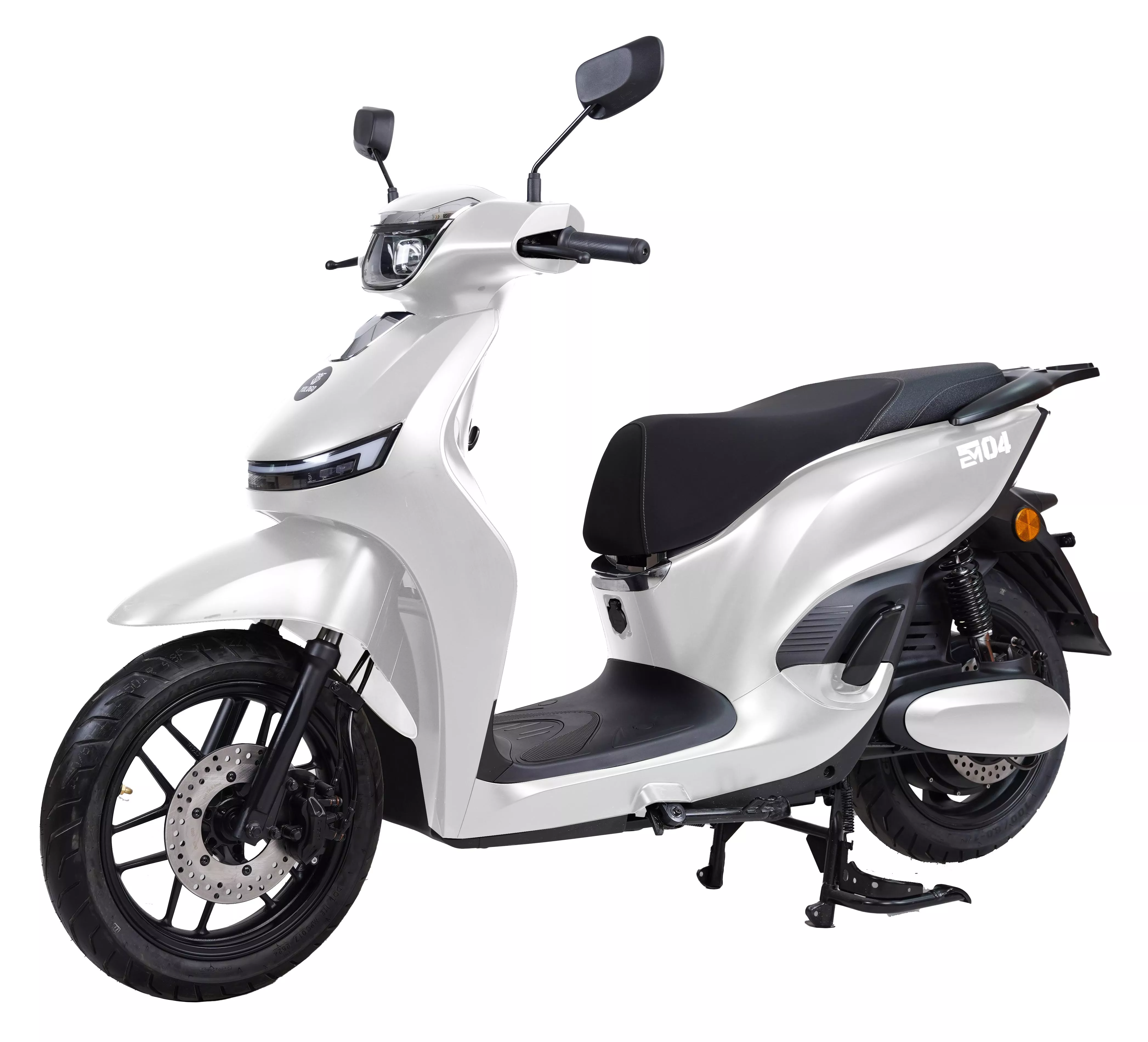

Style Meets Comfort


The EM04 is designed for those who value elegance and practicality in urban mobility. Its compact design features clean, modern lines that make it ideal for navigating city streets with ease. The elastic, comfortable seat ensures ergonomic support, offering maximum comfort even on longer rides.


____
Delivery Style


The sliding rear shelf makes it easy to remove and replace the battery. It boasts strong battery life, flexible operation, good load-bearing capacity, and intelligent convenience (APP connectivity, GPS positioning), while maintaining relatively low maintenance costs.


Size
——
Full Size : 1940*710*1136mm Wheelbase : 1340mm / 52.7 inch Seat Hight : 800mm / 31.5 inch
Handlebar Height : 1136mm / 44.7 inch




   Basic Information

   Size

1940*710*1136mm

   Seat Height

800mm

   Wheelbase

1340mm

   Ground Clearance

120mm

   Front Wheel

100/80-14

   Rear Wheel

100/80-14

   Motor

    Motor

Rear Wheel Hub Motor

    Rated Power

5000W

    Max. Torgue

225N.m

    Max. Speed

105km/h

    Climb Angle

30°

   Battery

   Battery Type

NCM

   Capacity

72V58Ah

   Battery Weight23kg

   Charging Time

6h

   Charger

10A

   Range

120 km

   Others

   Brake

CBS

   Disc

Φ220*Φ112*4

   Display

LED

   Vehicle Weight

90kg

   Max. Loading

200kg

   USB

B&C Type

   Person

2

   Keyless

Yes

   TFT

Yes

   TypeII

No

   EEC

L3e-A1
